HVAC Pipe Sizer - Steam Mobile App for iOS
The HVAC Pipe Sizer - Steam application allows you to quickly size a simple steam pipe system by inputting a number of piping and steam properties.
This app is a universal app that works on both the iPhone and iPad and adjusts its screen size accordingly. This app is also
optimized for iOS 13 and the iPhone 11 / iPad Pro.
Summary of Features

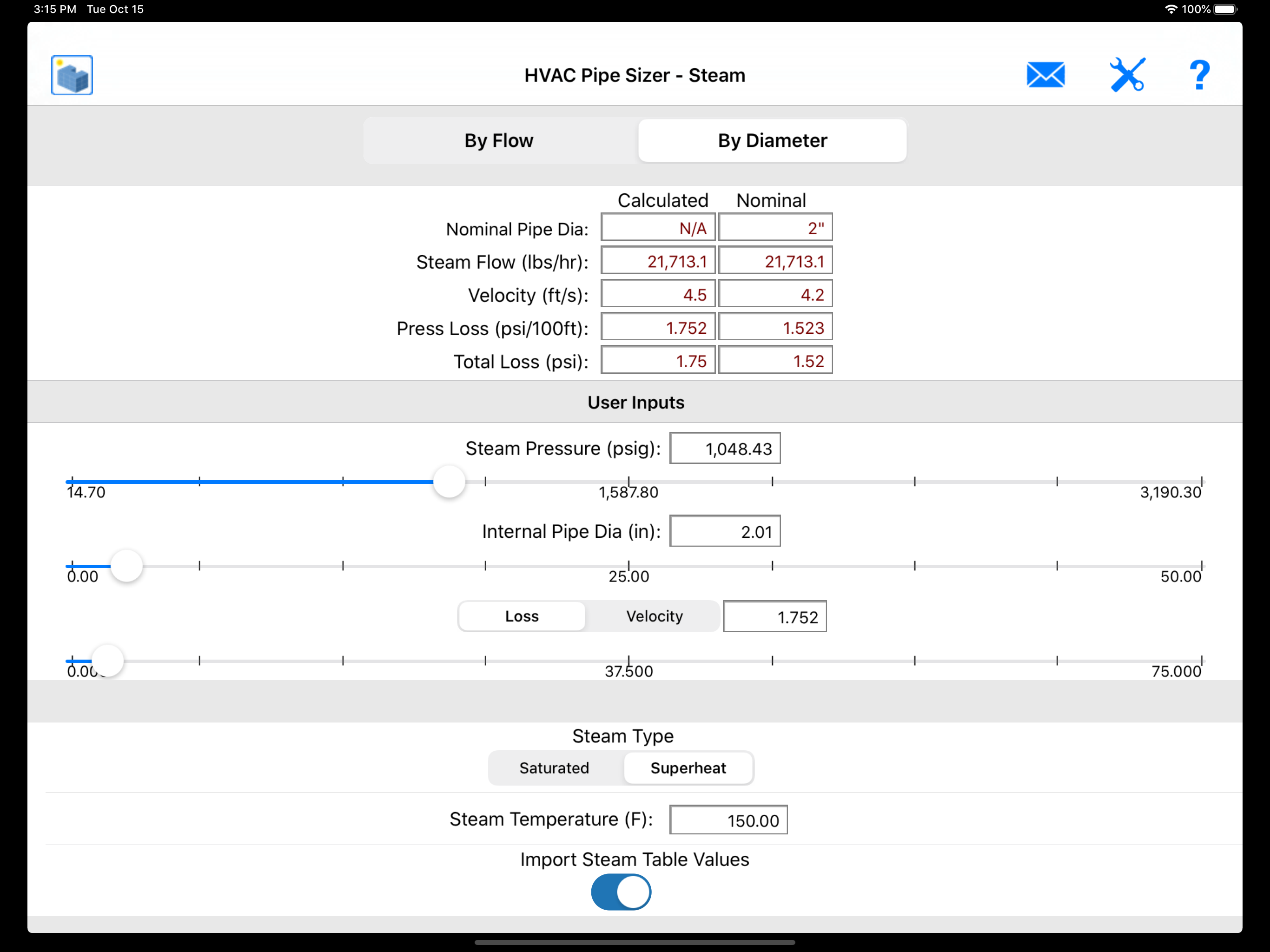

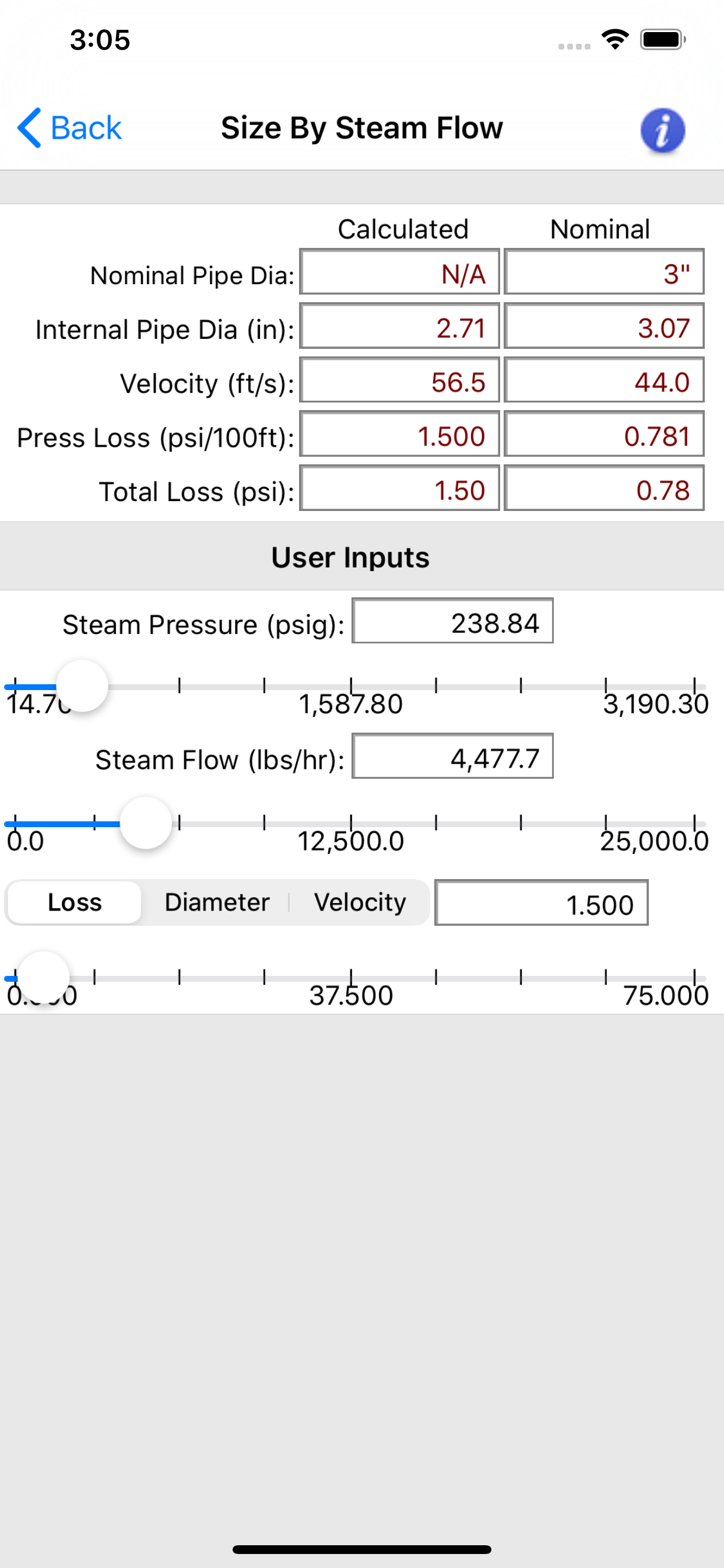

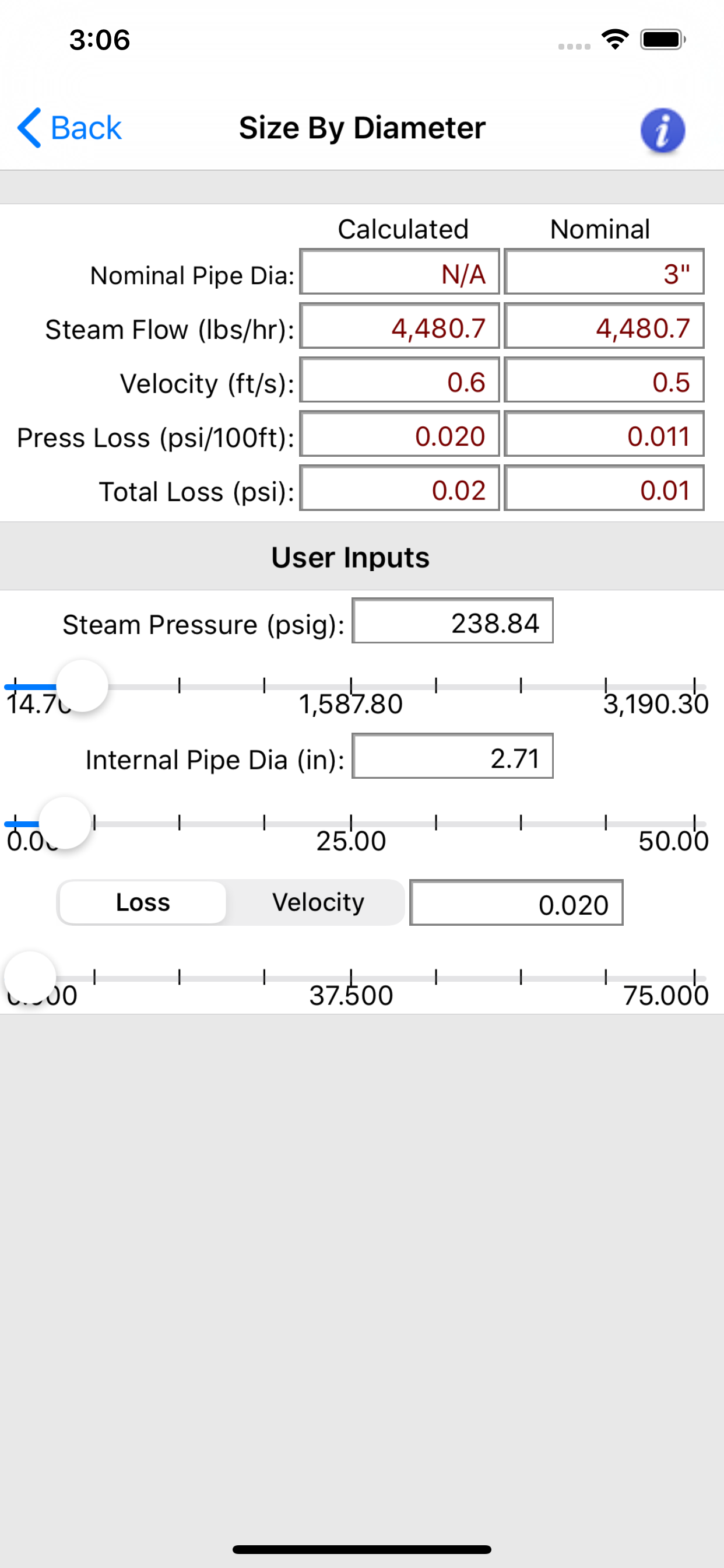

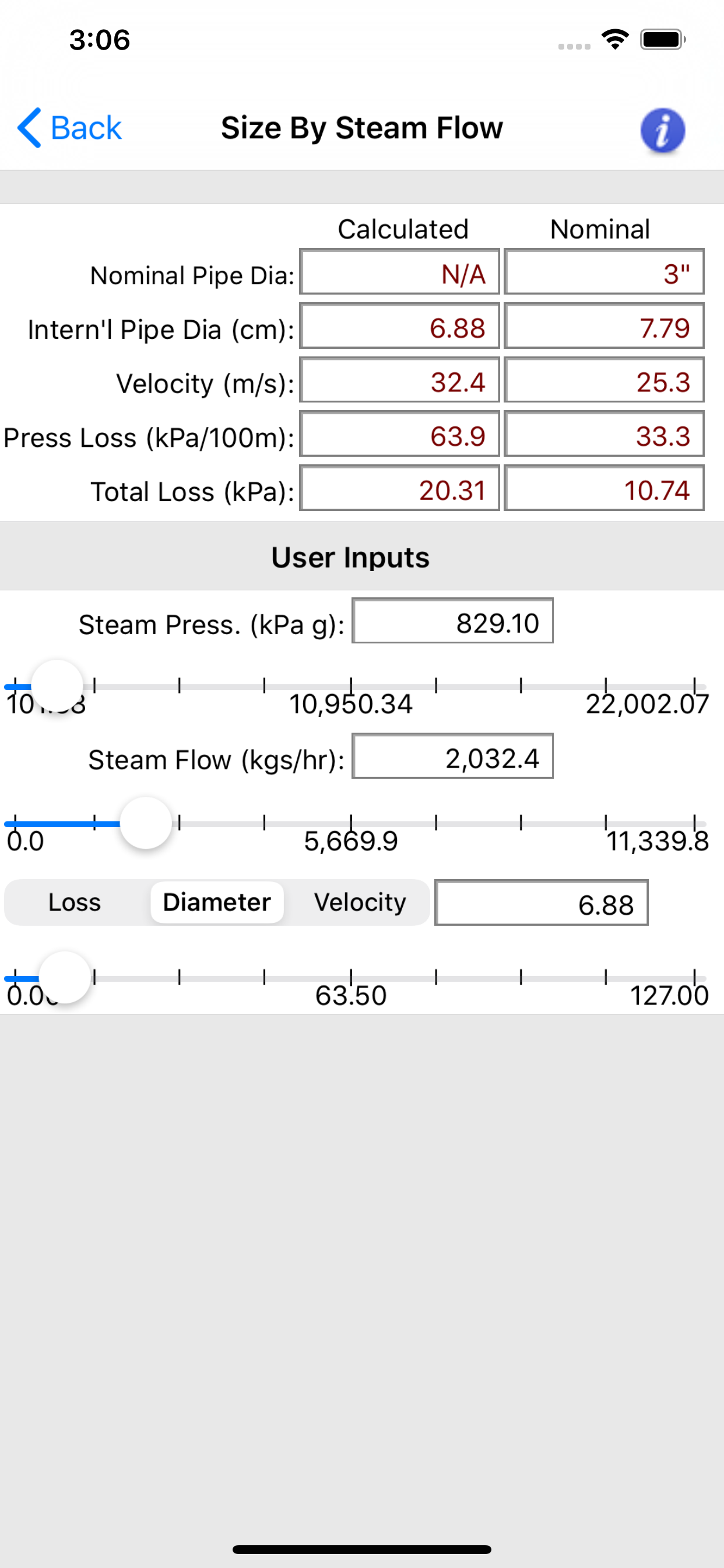

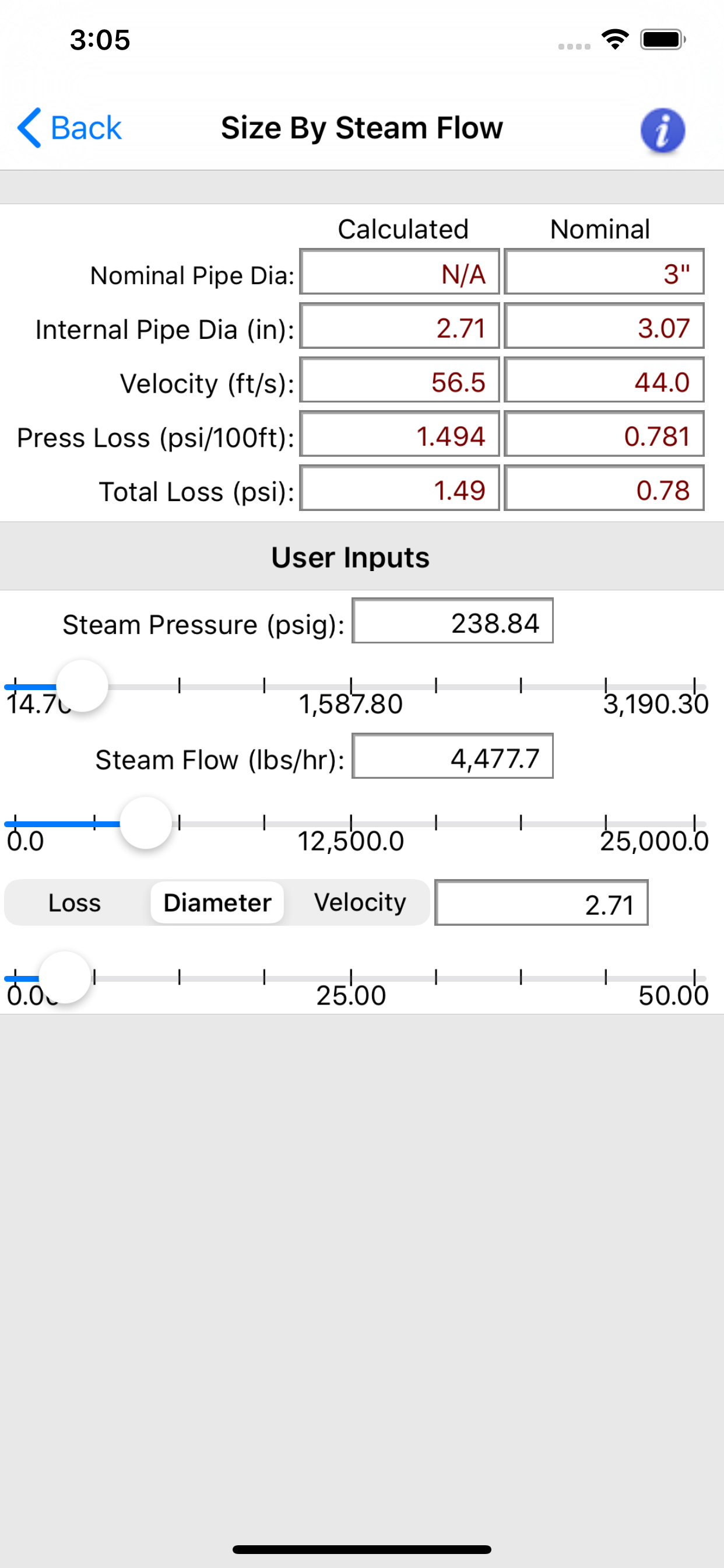

In the pipe sizing module, you can specify the total steam flow in lbs/hr (or kgs/hr), the initial steam pressure (psia or psig) and one of either pressure loss (psi/100ft), pipe internal diameter (inches) or steam velocity (ft/s) parameters. The results include both the exact and nominal pipe diameters and the calculated velocity and total pressure loss.If you are analyzing an existing steam pipe system, there is an option to input the existing pipe internal diameter, initial steam pressure and one of either pressure loss or steam velocity parameters to derive the calculated steam flow and other remaining properties.

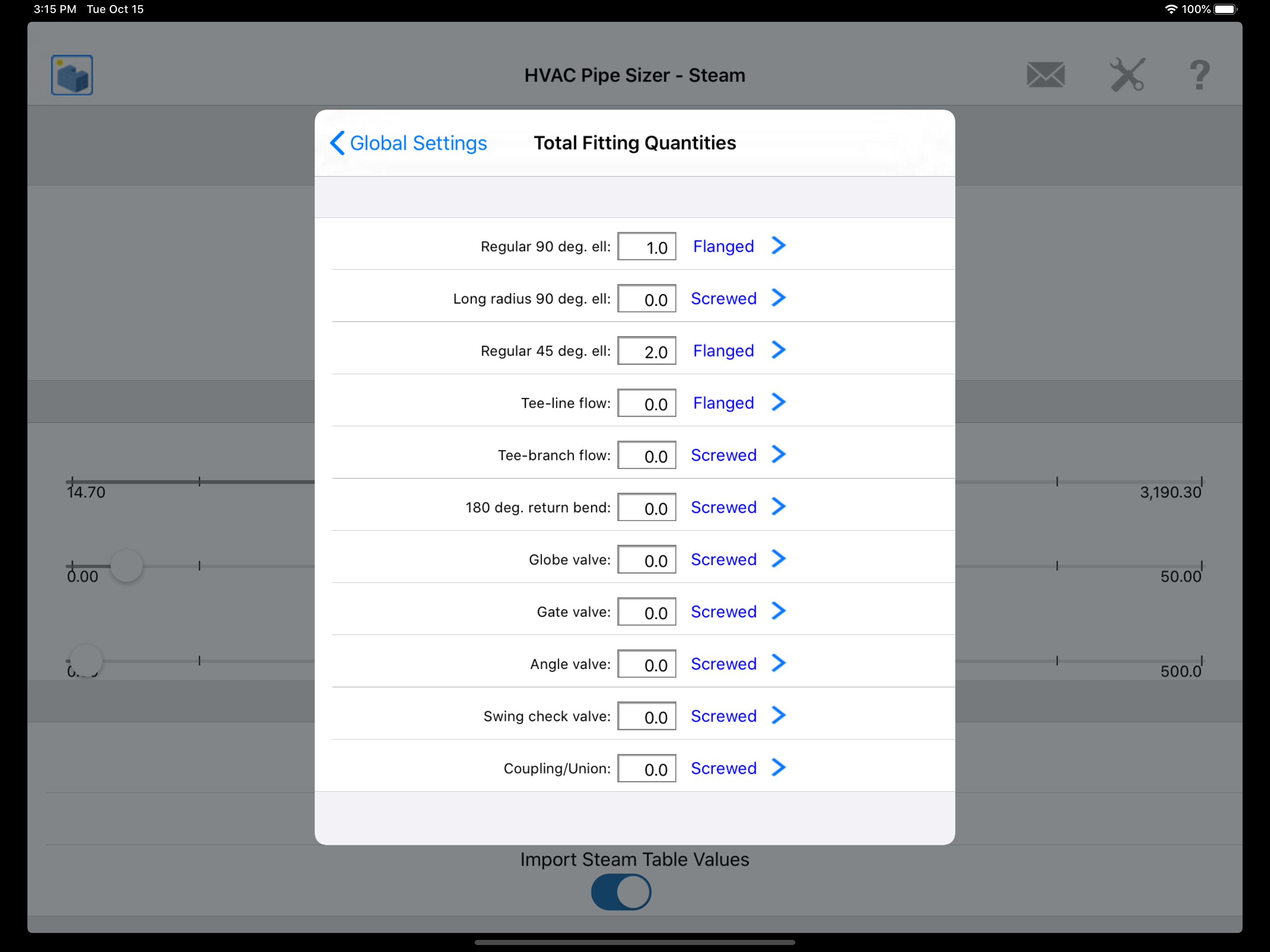

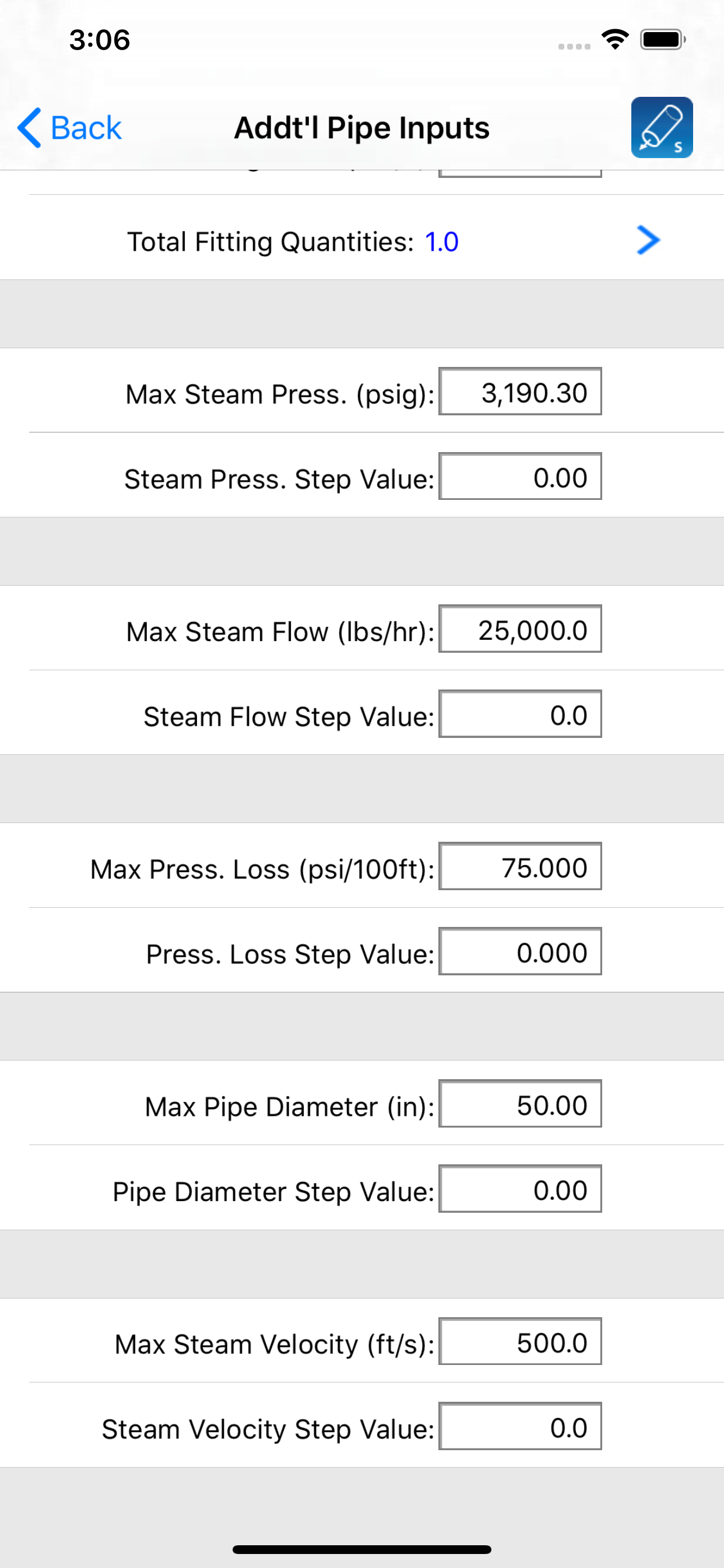

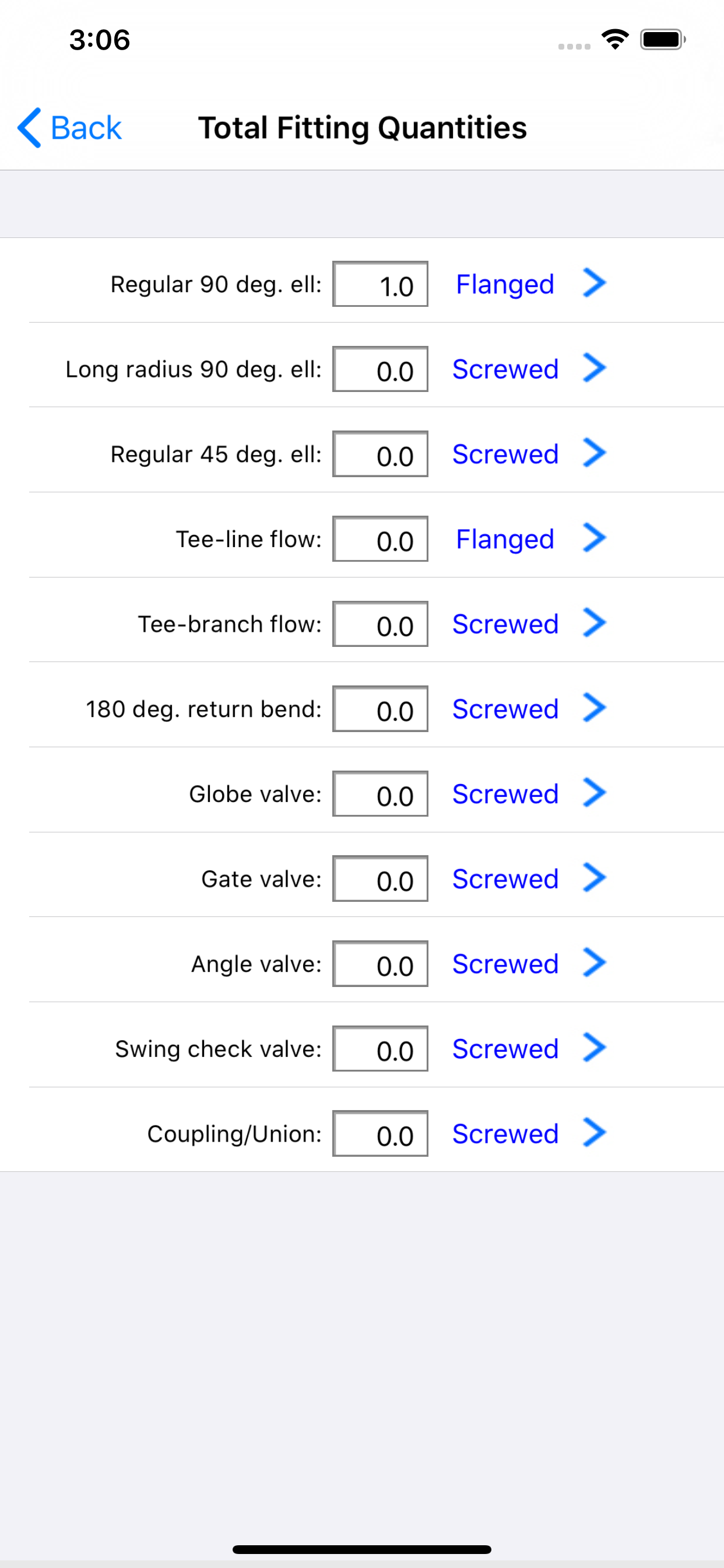

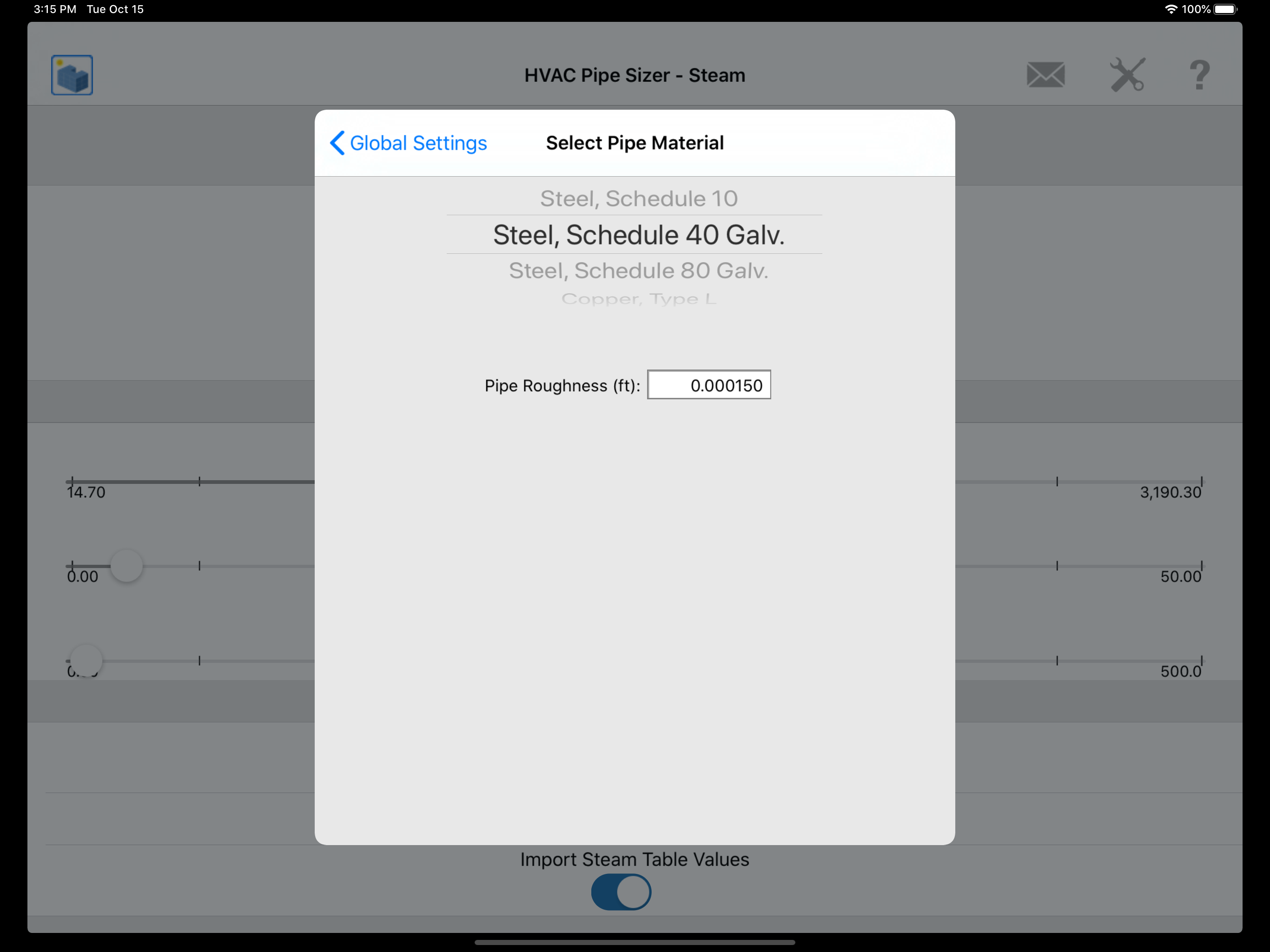

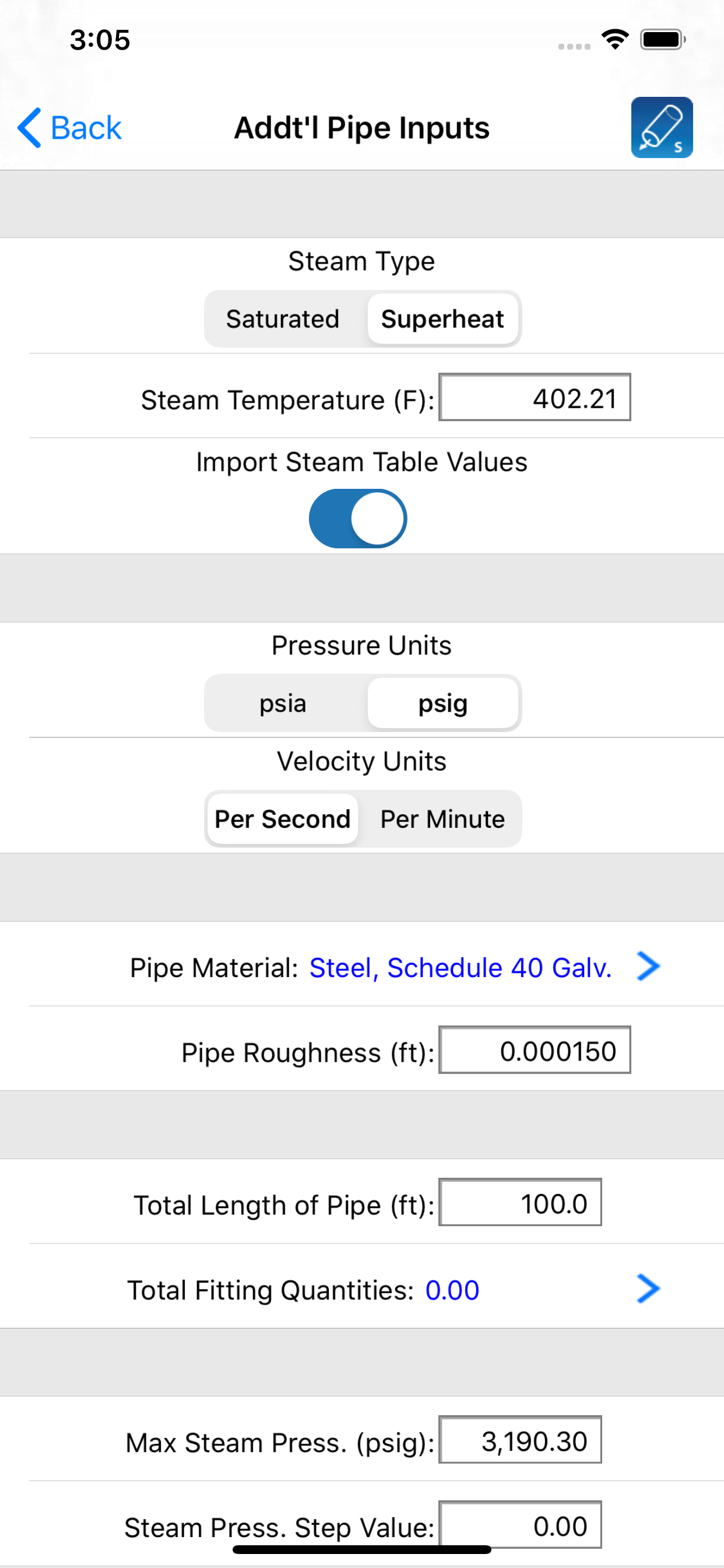

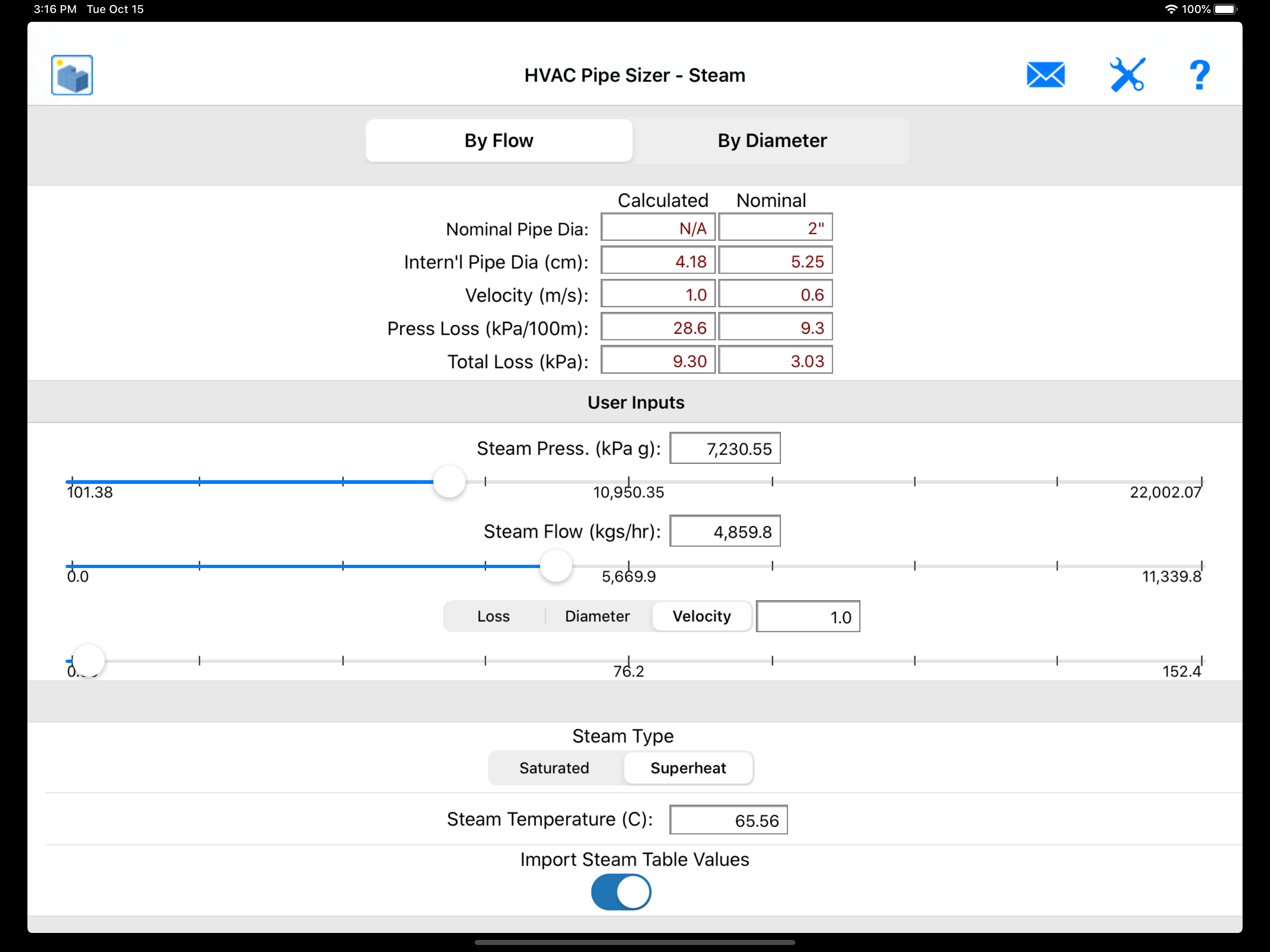

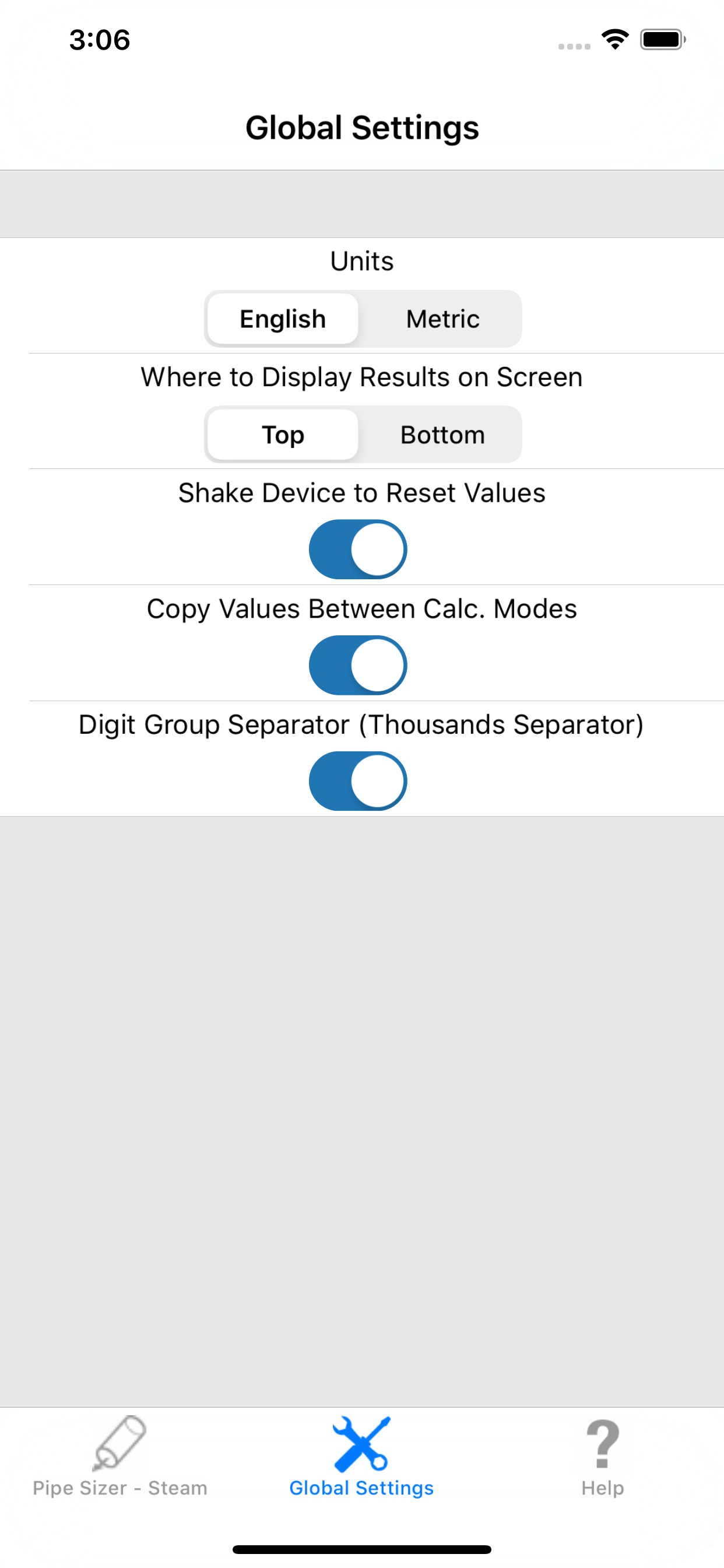

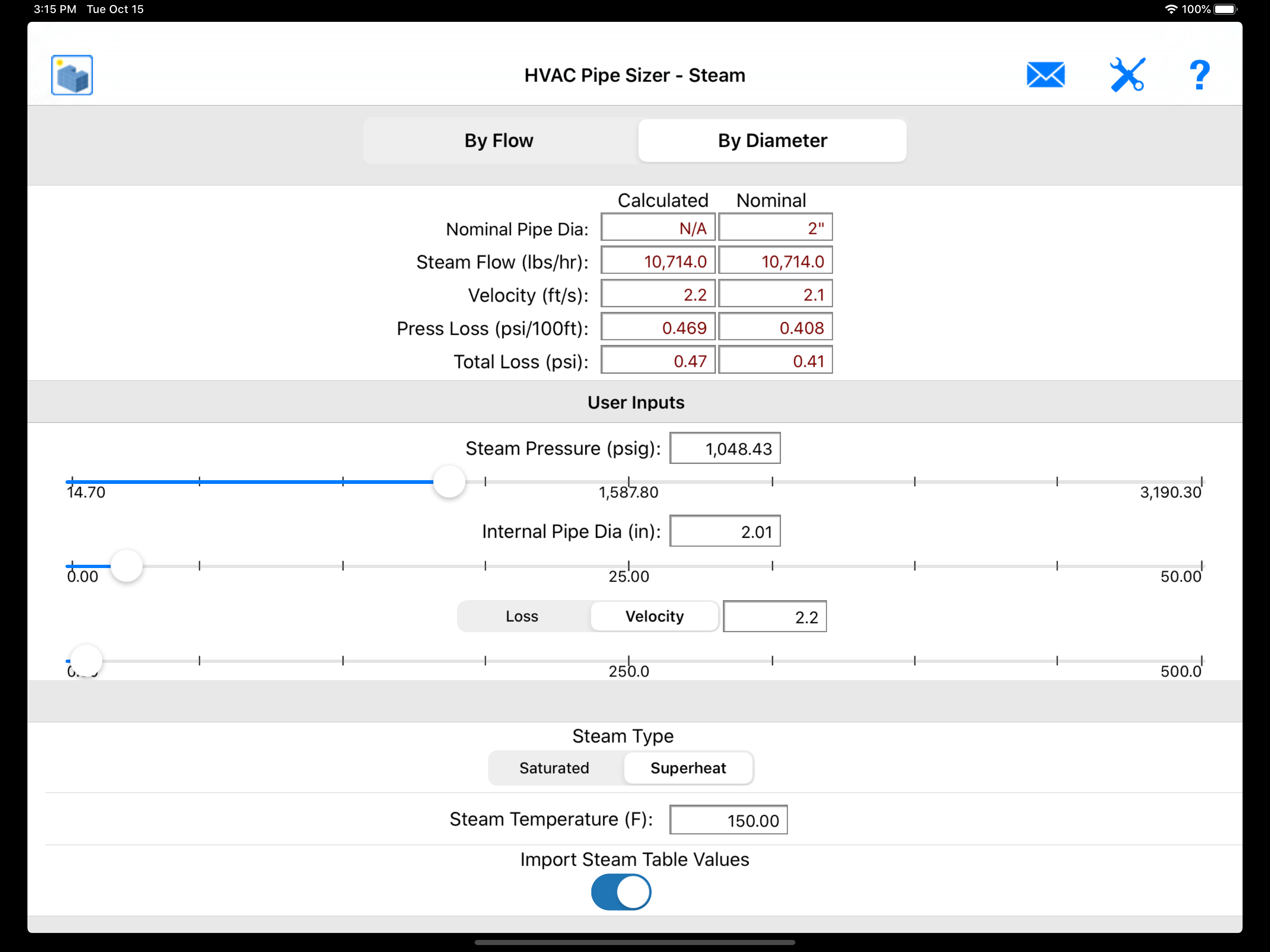

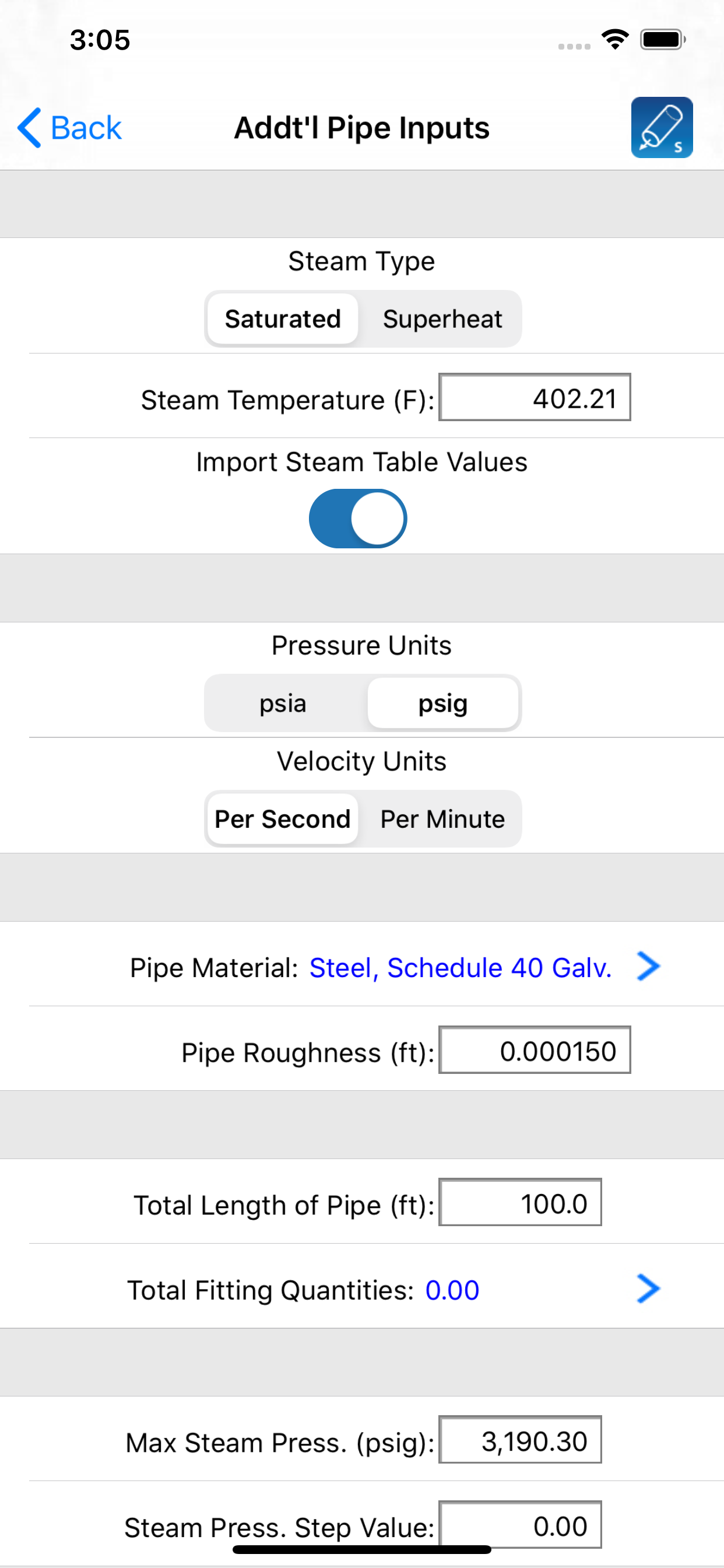

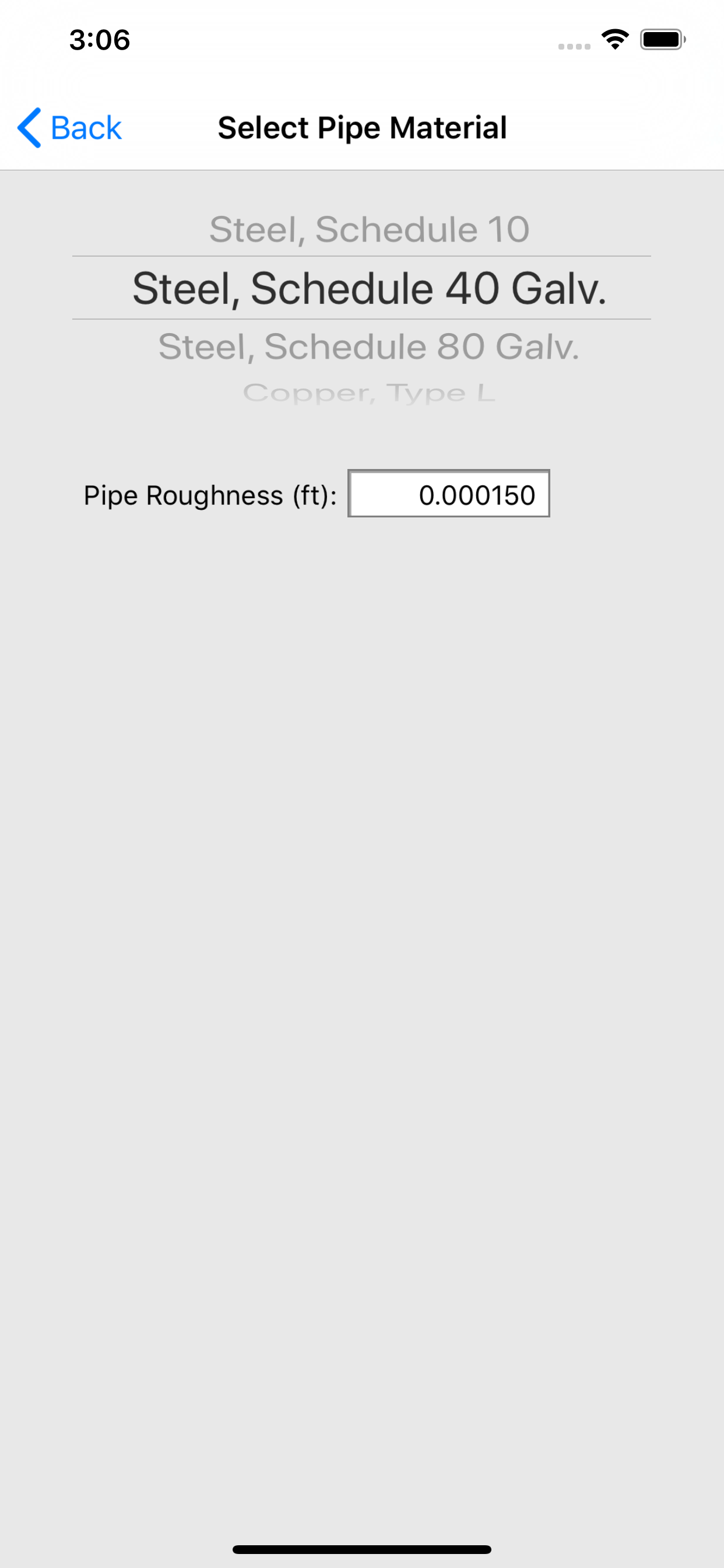

You can specify additional parameters such as whether the steam is saturated or superheated (with accompanying temperature), the pipe material type, the total length of pipe, quantities for up to 11 different types of pipe fittings, and much more. You can also choose to display values in either english or metric units.
This application includes built-in pipe fitting equivalent length and nominal pipe sizing tables for a wide variety of pipe material types and diameters.

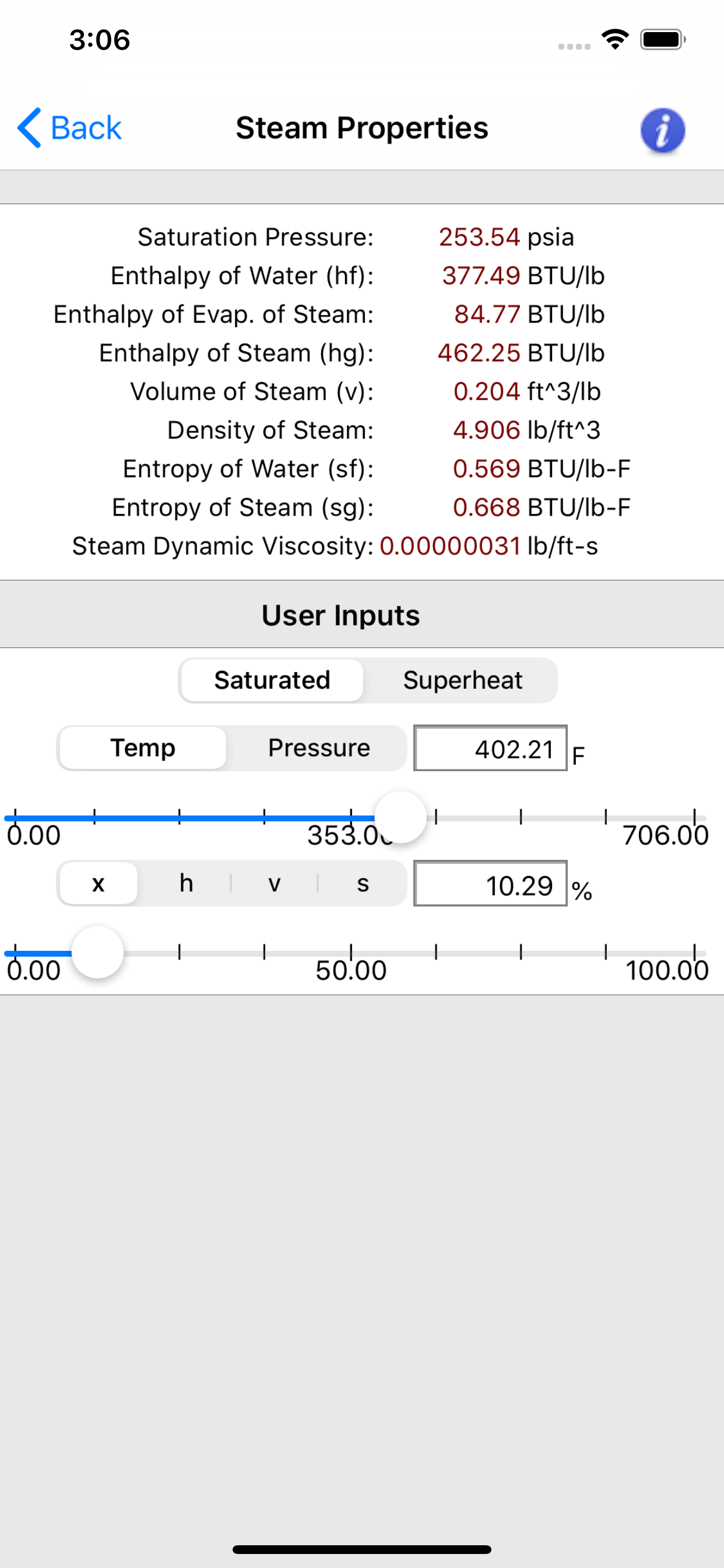

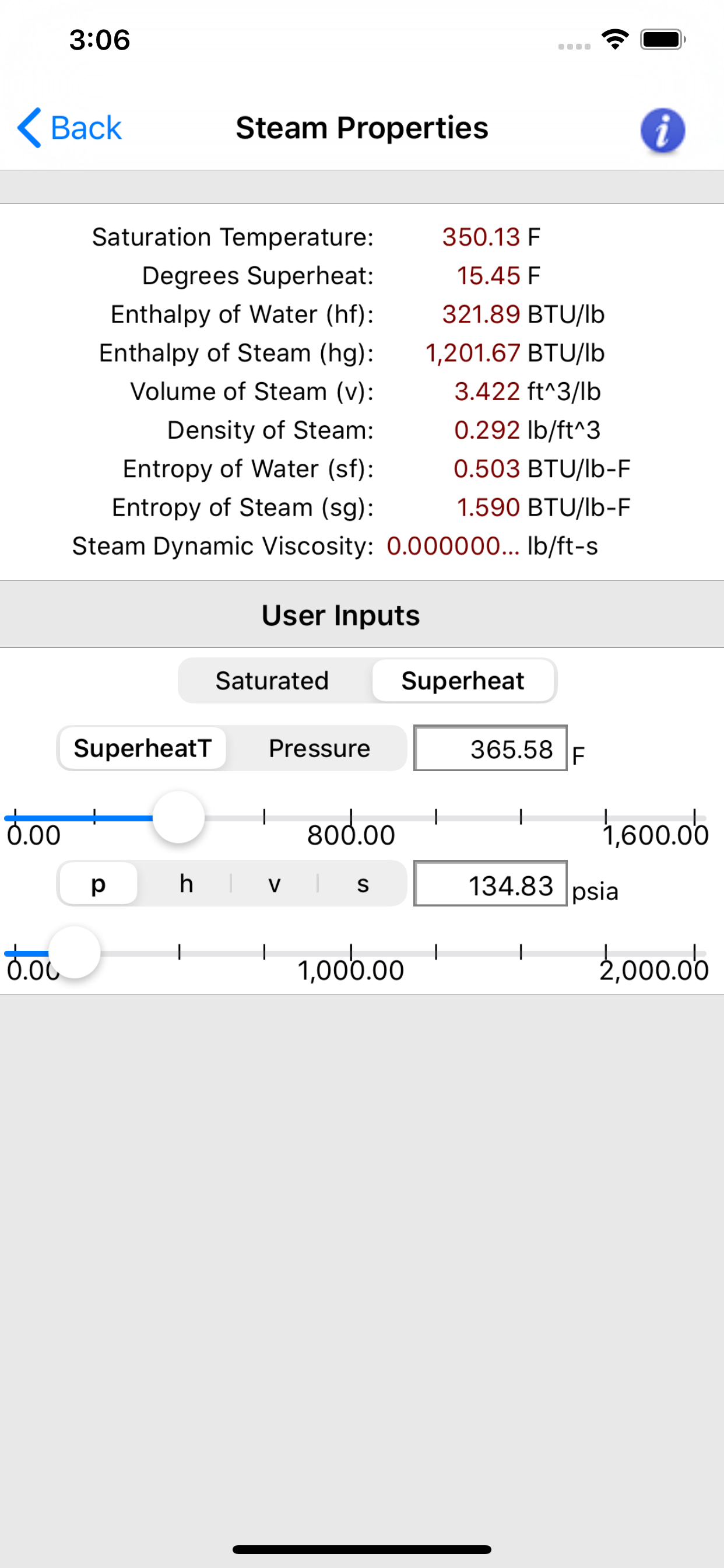

It includes a bonus steam table module that is one-of-a-kind. It allows you to easily view results by selecting a variety of input parameters and easily altering these inputs using the slider control. This is perfect for students who often rely upon the more static printed steam tables in engineering text.
This application uses slider controls that allow you to quickly increment or decrement the input values and immediately observe the calculated results.
This app includes the HVAC Equipment Locator app built right in.
